Solar Module System

SMS-1212

  • Class 1 Div 2 Rated
  • Supports up to 40 Watt Solar Panels
  • MPPT - Automatic Voltage Steering
  • Charges Included 12 Volt Sealed Lead Acid Battery
  • CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13 IP66 Enclosure
  • Wall mountable with Installed Polycarbonate Flanges
  • Solar Panel and Battery Temperature Compensation
  • Mates with the WM-485-232 Module for Communications

Downloads

Technical Notes

Manuals & Datasheets

  • Sorry! Nothing here yet, or not applicable.
Software

  • Sorry! Nothing here yet, or not applicable.

Photos

T

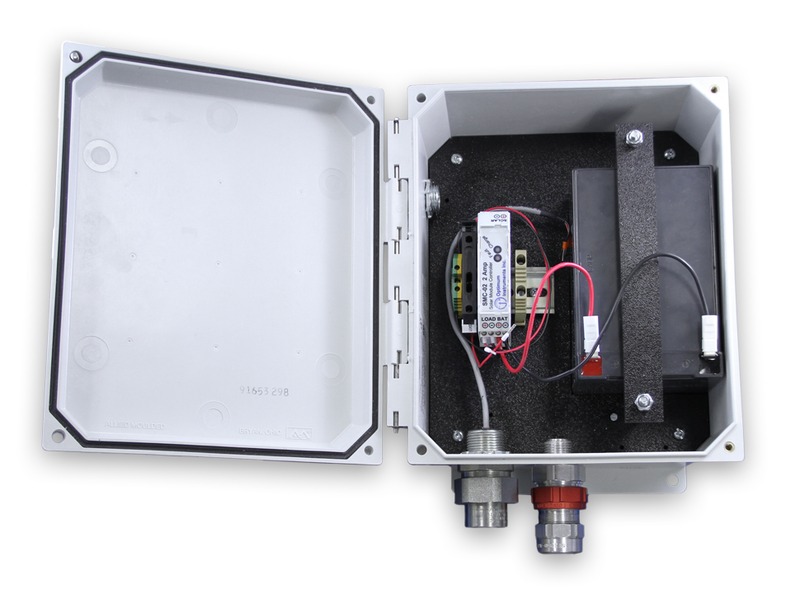

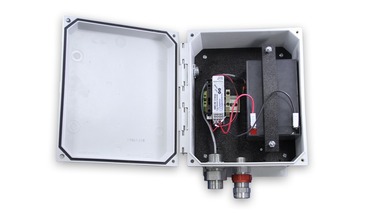

he internal SMC-02 is an efficient solar module controller that can be used to keep a sealed lead acid battery topped off with a solar panel while handling up to 40 watt size.

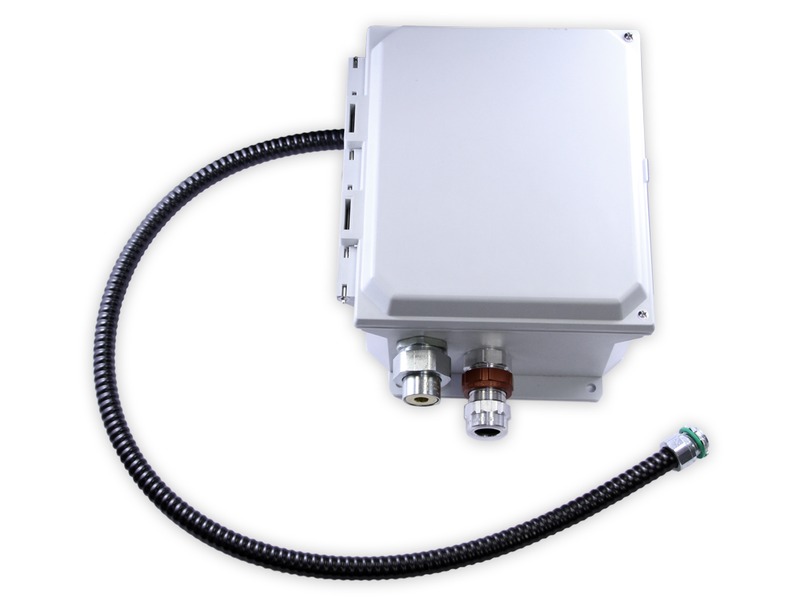

Designed for use in harsh places, the SMS-1212 is Class 1 Div 2 approved and comes inside a wall mountable IP66 fibreglass enclosure. The controller features built in battery and solar module temperature compensation, in order to monitor both its environment and the battery it charges. Programmable charge rate up to 2 amps.

The SMC-02 automatically steers the voltage to the point of maximum power output of the solar panel even though the output is varying due to light intensity changes. Standard solar controllers will simply stop charging the battery when illumination levels are below the chargers full power requirements.

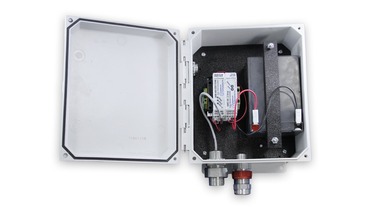

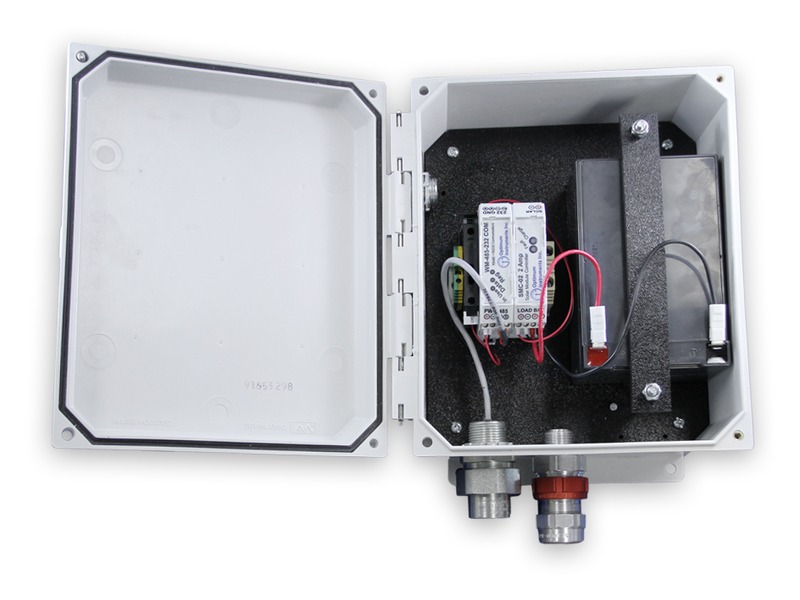

Additionally the SMS-1212 system can house the Optimum Instruments WM-485-232 module to provide wireless communication to your equipment. Thus the SMS-1212 becomes an all-in-one system that can power your equipment, charge the included 12 Amp hour battery, and provide wireless access by either creating or joining an existing WiFi network.

To maintain ease of use, the WM-485/232 accepts a wide power input range with clearly labelled screw terminals. Low operating power gives this module a long life. When included a full SMS-1212 system, you’ll never have to worry about it losing power.

Up to 40W solar panel sold separately. Just ask when you order!

Part Numbers

SMS-1212
SMS-1207

To Order, Call Us At 866-865-9778!

SPECIFICATIONS

Electrical
Mechanical
Environmental
Power Requirements

Included Battery: 12 Volt Sealed Lead Acid
Solar Panel Voltage Range: 14-30 V
Solar Panel Wattage Range up to 40 W
Load Current Range up to 4 A

Case Material

Fibreglass reinforced polyester material formulation - UV stabilized

Dimensions

Size (cm) 25.5 x 21.0 x 10.5
Size (inches) 10.05 x 8.27 x 4.13
Weight kg (lbs) 4.5 (10)

Operating Temperature Range

Standard: -40 to +60°C

Approvals

Class 1 Div 2 Groups C, D, T3
CSA Std C22.2 No 213, 14, E79-15-95

Enclosure Ratings

IEC 60529 Type IP66
CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
